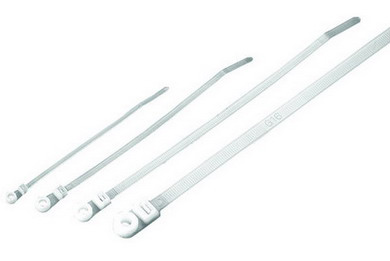

Cable Ties MOUNTABLE HEAD WIRE TIES
Description: Extra heavy duty ties for application where higher tensile strength is required.
Material:UL Approved Nylon 66, 94V-2

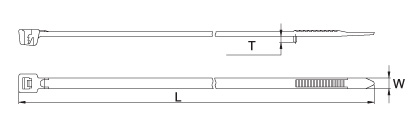

Specification information of MOUNTABLE HEAD WIRE TIES:
Approx. Length
mm(inch) |
Approx. Width
mm(inch) |
Max.Bundle Diamm(inch) |
Min. Loop
Tensile Strength
kg(lbs) |
Hole Diameter
mm(inch) |
screw |
110 (4.33) |
2.5 (0.10) |
22 (0.87) |
8.1 (18) |
3.2 (0.126) |
M3 |
150 (5.95) |
3.6 (0.14) |
32 (1.26) |
18.2 (40) |
4.2 (0.165) |
M4 |
200 (7.87) |
4.8 (0.19) |
50 (1.97) |
22.2 (50) |
5.5 (0.216) |
M5 |
216 (8.50) |
4.8 (0.19) |
53 (2.09) |
22.2 (50) |
5.5 (0.216) |
M5 |
310 (12.20) |
4.8 (0.19) |
76 (2.99) |
22.2 (50) |
5.5 (0.216) |
M5 |
377 (14.84) |
4.8 (0.19) |
102 (4.02) |
22.2 (50) |
5.5 (0.216) |
M5 |
200 (8.46) |
7.6 (0.30) |
50 (1.97) |
54.4 (120) |
5.7 (0.224) |
M5 |
313 (12.32) |
7.6 (0.30) |
76 (2.99) |
54.4 (120) |
5.7 (0.224) |
M5 |
380 (14.96) |
7.6 (0.30) |
98 (3.86) |
54.4 (120) |
6.3 (0.248) |
M6 |
We are Professional in making Cable Ties Mould in different size and type,With around 2 decades rich experience,
specialized in designing and manufacturing Mould for MOUNTABLE HEAD WIRE TIES.
We can ensure customer:
1. Quickly response and complete understanding
2. High quality
3. The most competitive and reasonable price
4. Short delivery time |
