Wire Ties

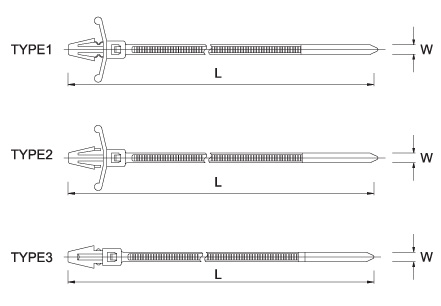

PUSH MOUNT TIES
Description:
．Suitable for industrial fixing, wire binding and household appliance
wire fixture.
．Apply by first drilling a hole on panel or board with appropriate hole
diameter and board thickness. Insert the mount head in to the
hole for fixture
Material: UL Approved Nylon 66, 94V-2
Specification information of
PUSH MOUNT TIES:
Approx. Length
mm(inch) |
Approx. Width
mm(inch) |
Hole Diameter
mm(inch) |
Max.Bundle Diamm(inch) |
Min. Loop
Tensile Strength
kg(lbs) |
Panel Thickness
mm(inch) |
110 (4.33) |
2.5 (0.10) |
4.8(0.189) |
22 (0.87) |
8.1(18) |
~2.4(.094) |
130 (5.12) |
3.2 (0.13) |
4.0(0.157) |
28 (1.10) |
13.6(30) |
~2.0(.079) |
132 (5.17) |
4.8 (0.19) |
6.4(0.252) |
25 (0.98) |
22.2(50) |
~3.2(.126) |
170 (6.73) |
4.8 (0.19) |
6.4(0.252) |
38 (1.50) |
22.2 (50) |
~3.2(.126) |
200 (7.87) |
4.8 (0.19) |
6.4(0.252) |
45 (1.77) |
22.2 (50) |
~3.2(.126) |
110 (4.33) |
2.5 (.10) |
4.8(0.189) |
28 (1.10 ) |
8.1 (18) |
~2.4(.094) |
130 (5.12) |
2.5 (0.10) |
4.8(0.189) |
22 (0.87) |
8.1 (18) |
~2.4(.094) |
130 (5.12) |
3.2 (0.13) |
4.0(0.157) |
28 (1.10) |
13.6 (30) |
~2.0(.079) |
150 (5.91) |
3.6 (0.14) |
5.2(0.205) |
32 (1.26) |
13.6 (30) |
~2.8(.110) |
200 (7.91) |
4.8 (0.19) |
6.3(0.248) |
46 (1.81) |
22.2 (50) |
~3.6(.141) |
Releasable |
130 (5.12) |
3.2 (0.13) |
4.0(0.157) |
28 (1.10) |
13.6(30) |
~2.0(.079) |
110 (4.33) |
4.8 (0.19) |
6.4(0.252) |
22 (0.87) |
22.2(0.49) |
~3.2(.126) |
200 (7.78) |
4.8 (0.19) |
6.4(0.252) |
45 (1.77) |
22.2(0.49) |
~3.2(.126) |
200 (7.78) |
4.8 (0.19) |
6.3(0.248) |
46 (1.81) |
22.2 (0.49) |
~3.6 |
We are Professional in making Cable Ties Mould in different size and type,With around 2 decades rich experience,
specialized in designing and manufacturing
PUSH MOUNT TIES MOULD.
We can ensure customer:
1. Quickly response and complete understanding
2. High quality
3. The most competitive and reasonable price
4. Short delivery time |
